Picked up at a local car boot sale for £10, no leads though

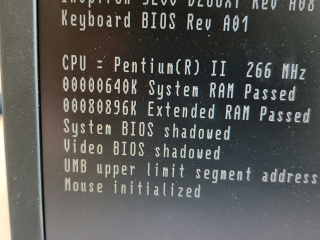

Looks suspiciously like my HP Omnibook 3000, I imagine the power supply is compatible. From looking at the specs online, it looks almost identical although it appears to have a 266MHz Pentium II processor rather than the 233MHz Pentium II in the HP

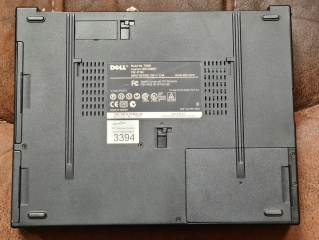

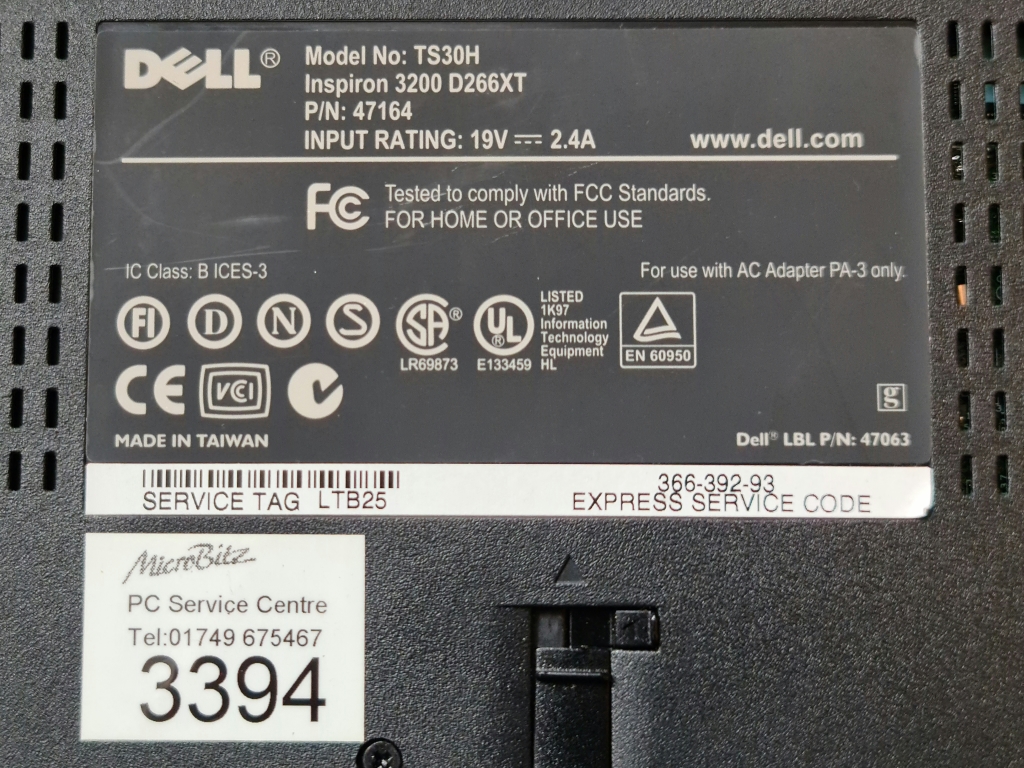

Model label, this is a Inspiron 3200 D266XT

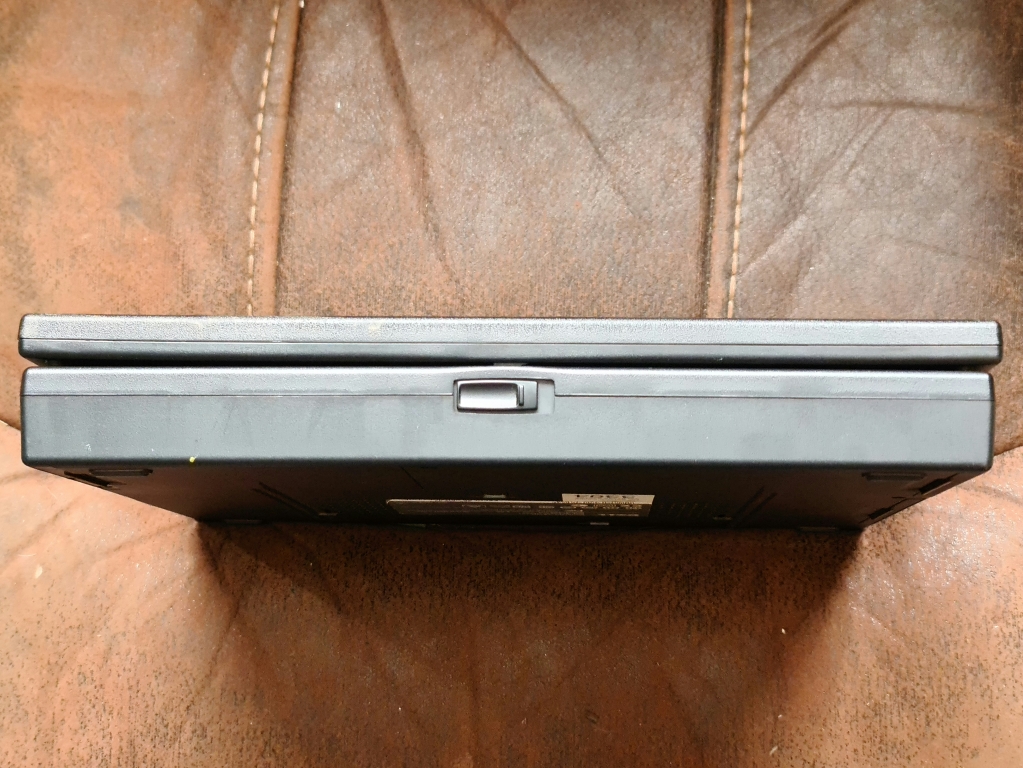

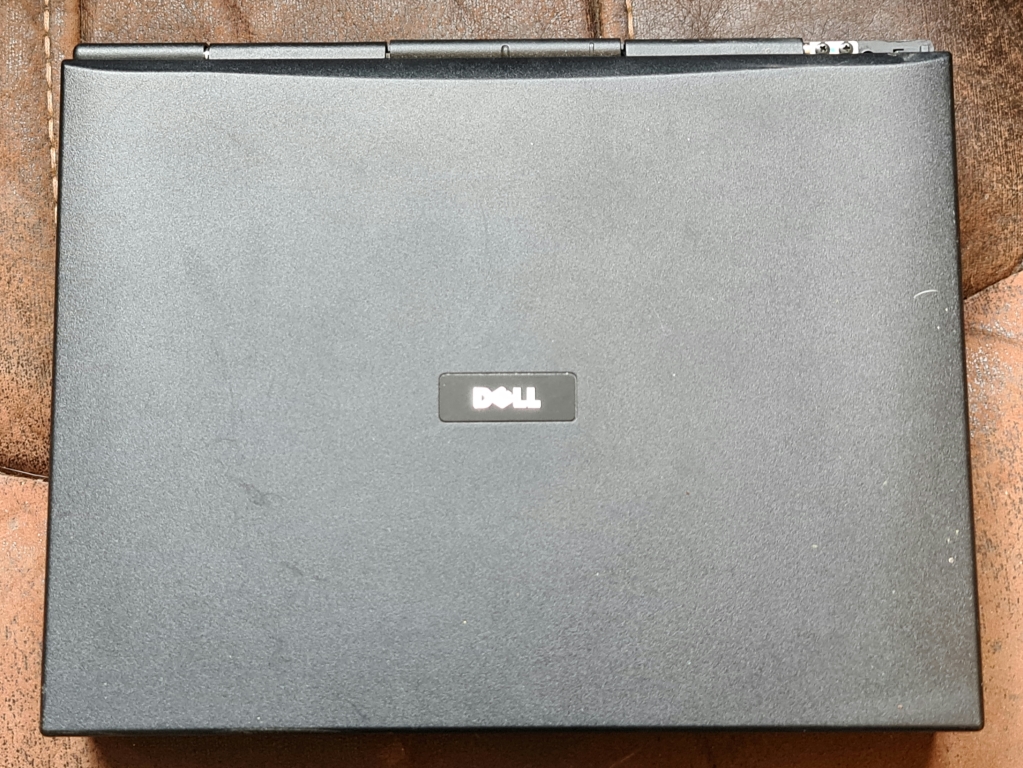

Front

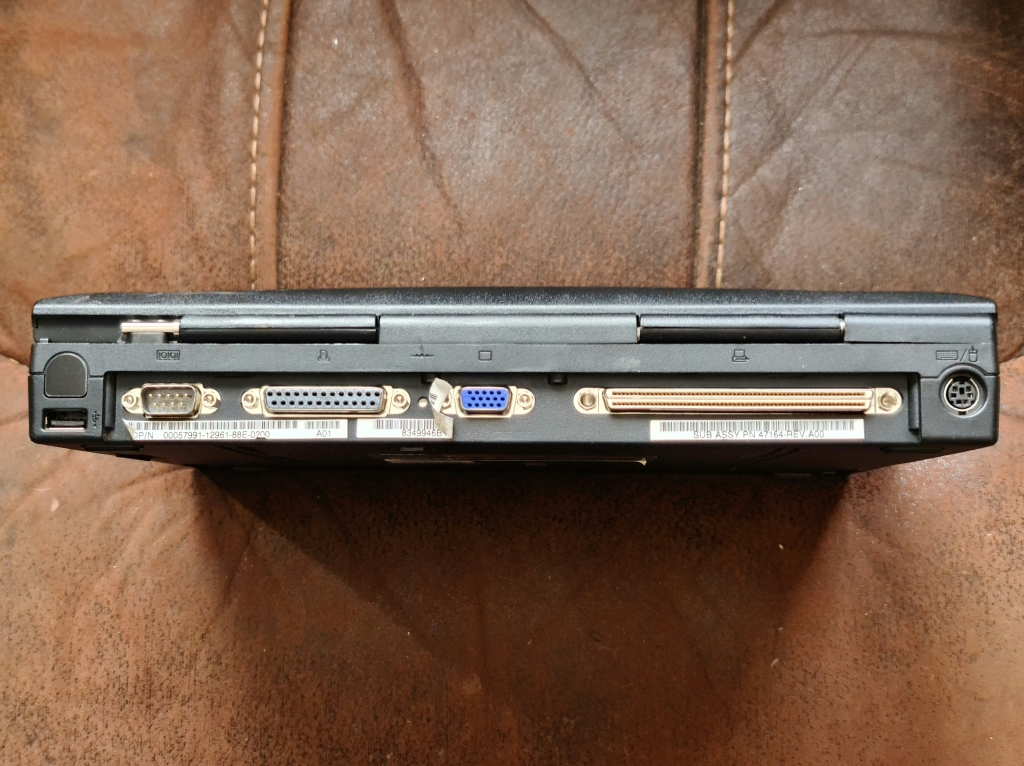

Rear

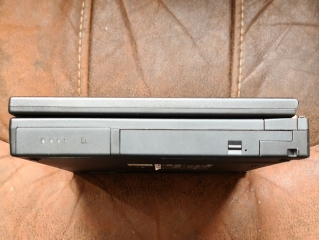

Left side

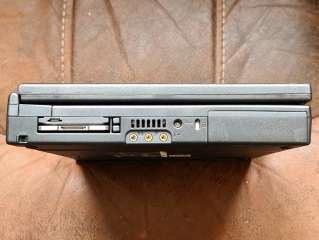

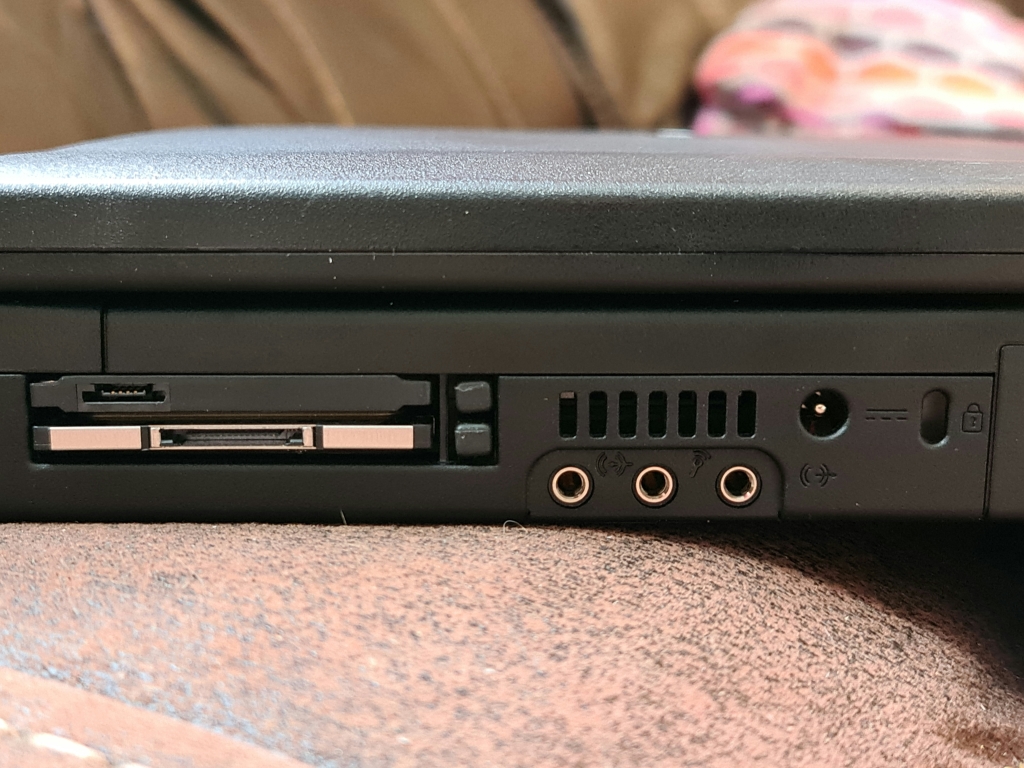

Close up of the PCMCIA slots with cards in, and audio sockets

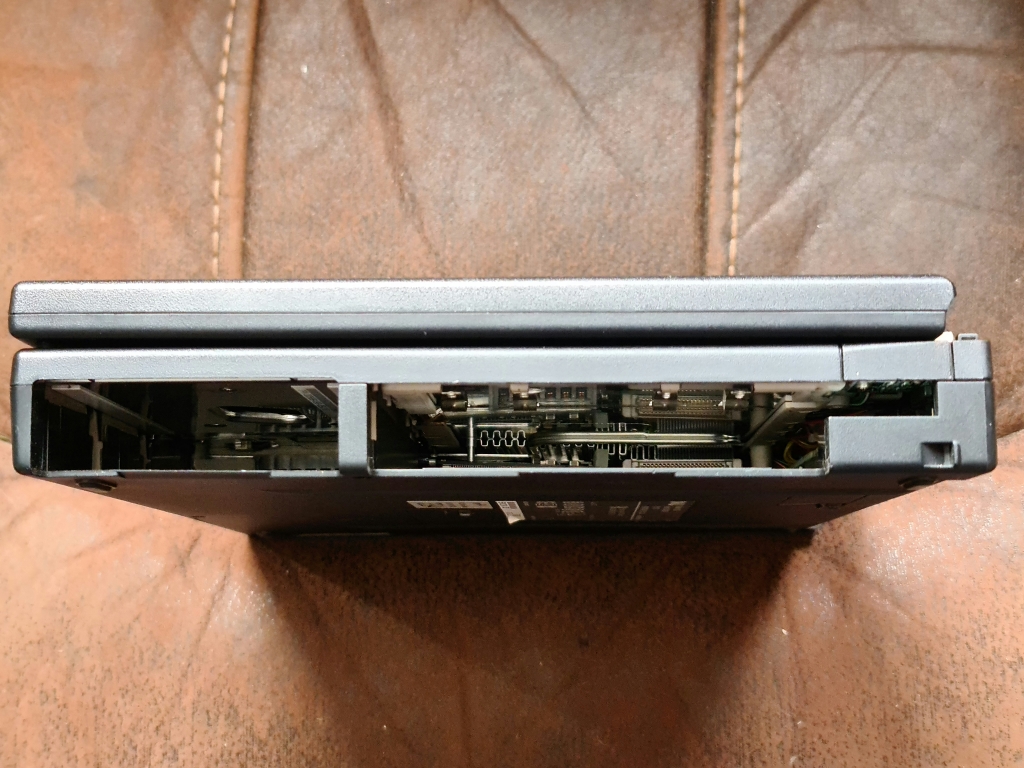

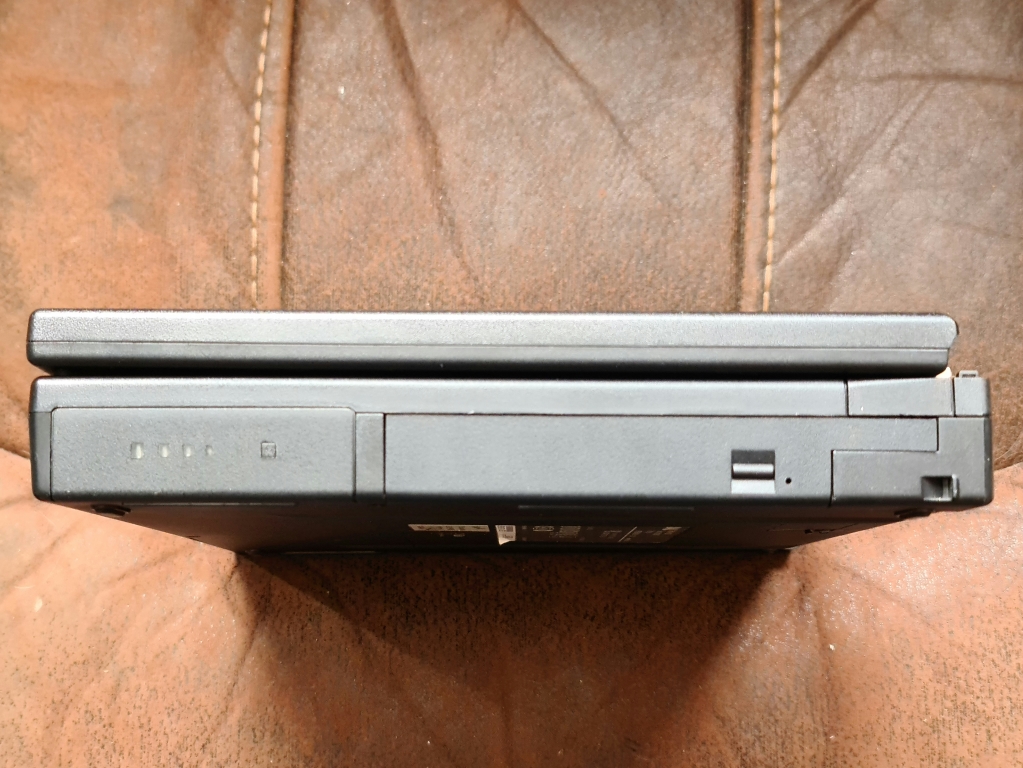

Right side with battery and CD ROM drives removed

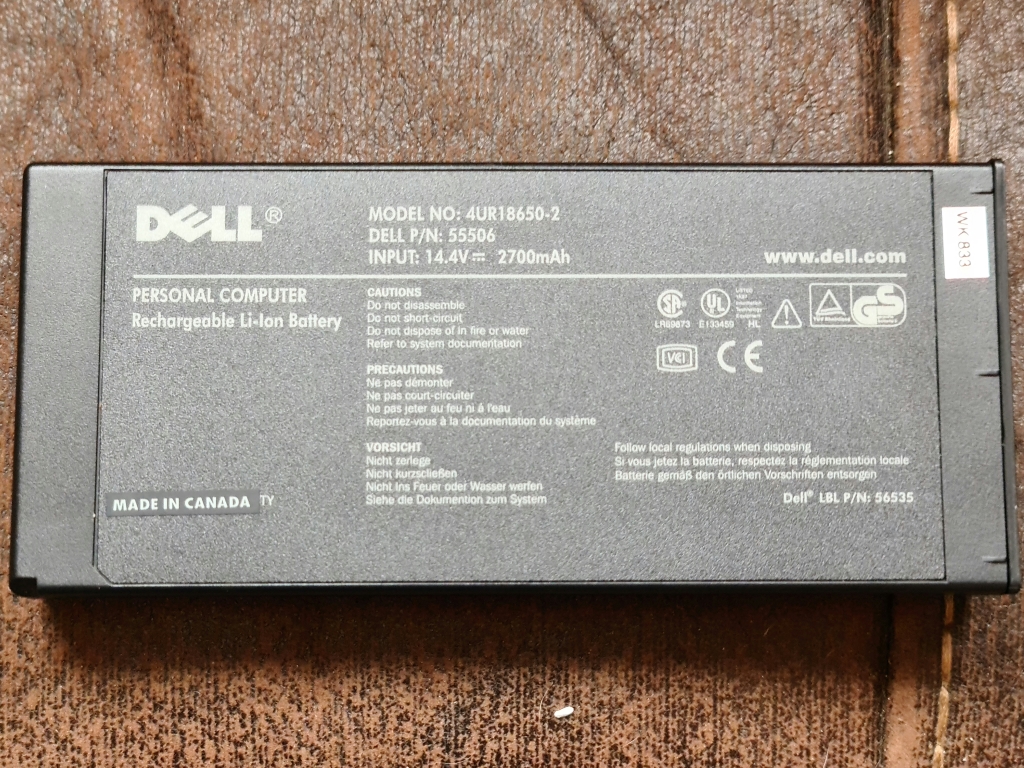

I'm sure it's the same battery and CD ROM as the HP
So similar

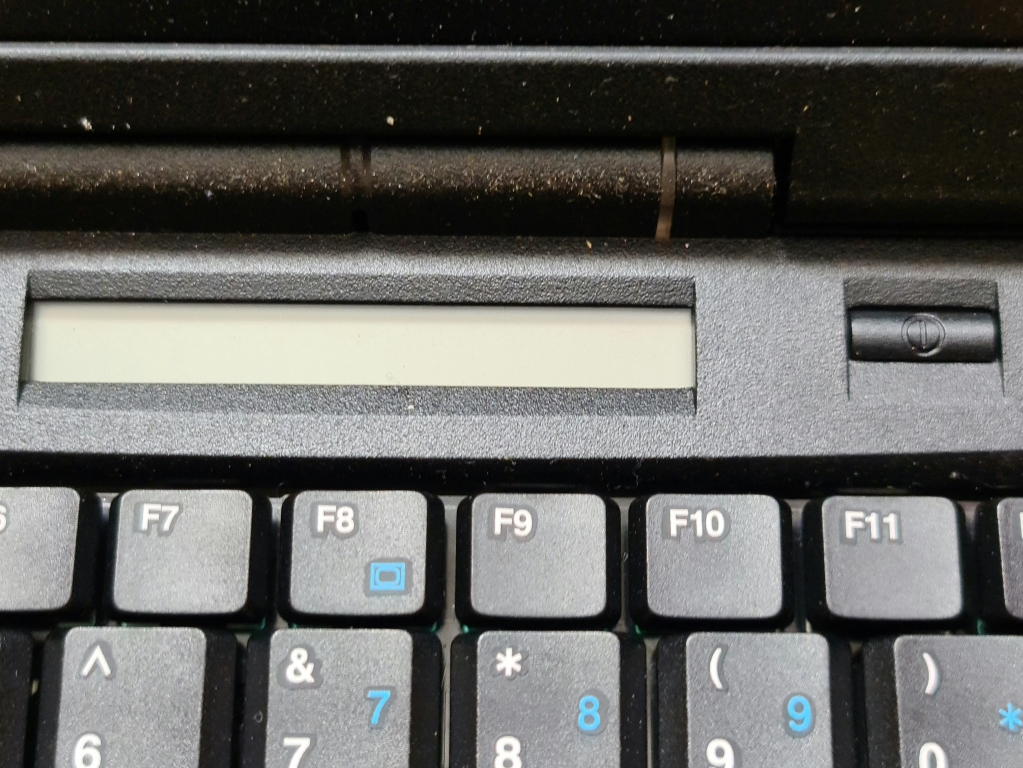

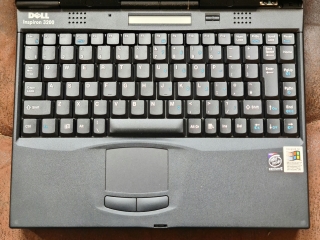

Keyboard close up
LCD screen and Windows sticker, I hope it has Windows 98 installed

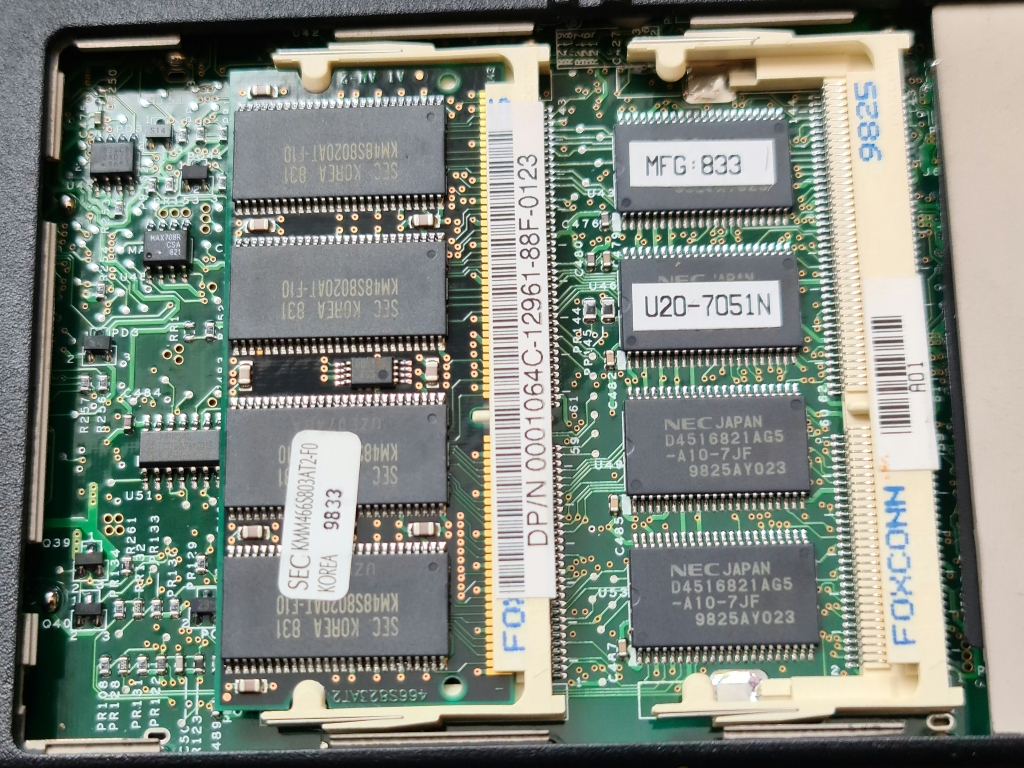

RAM slots, only one is used, there is 16MB of on board RAM, just like the HP version

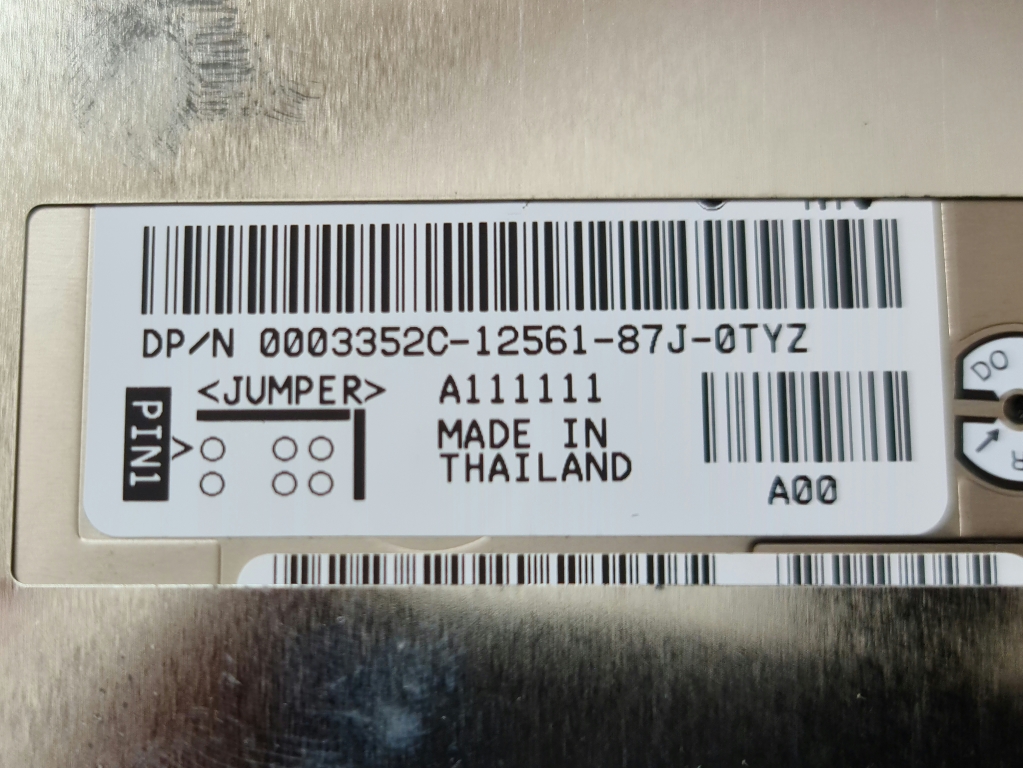

Only label visible for the hard disc, the HP can only use one specific hard disc in one of two capacities, don't know if the Dell is the same

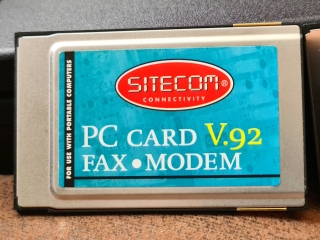

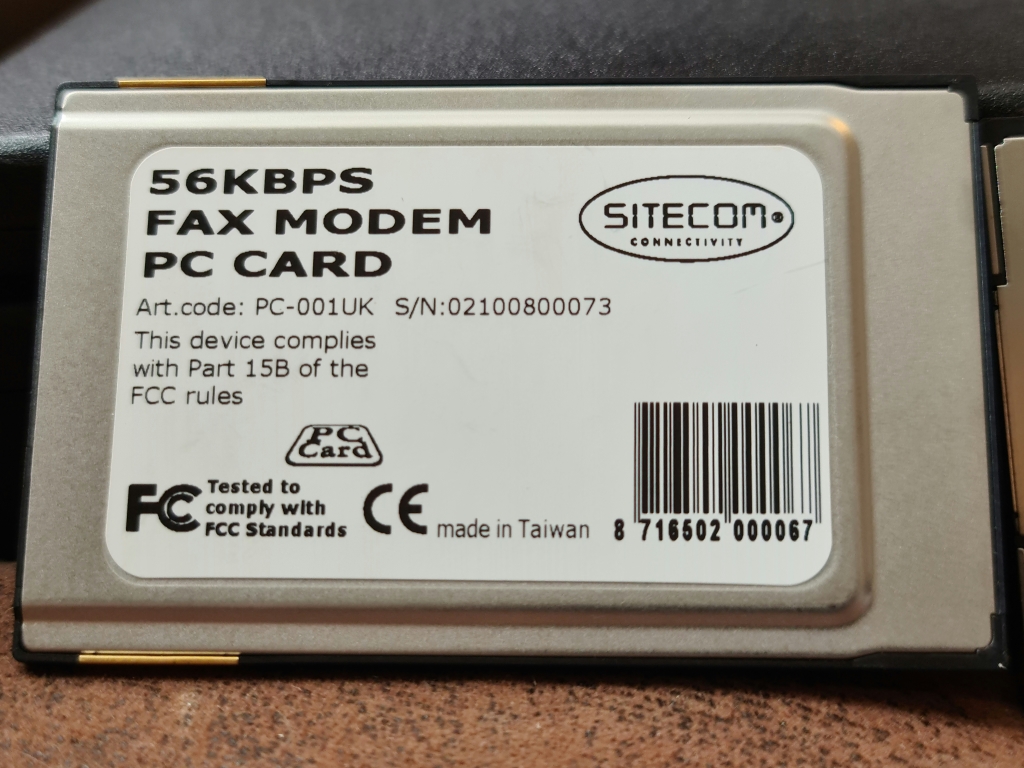

These are the cards that were installed, I already have the modem card

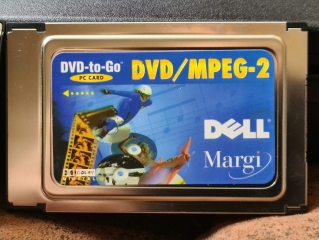

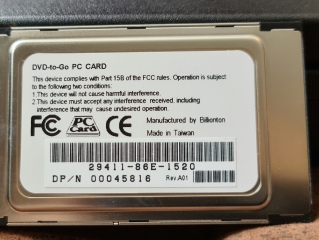

But not the MPEG2 card

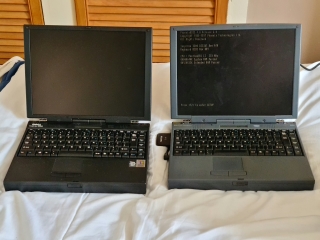

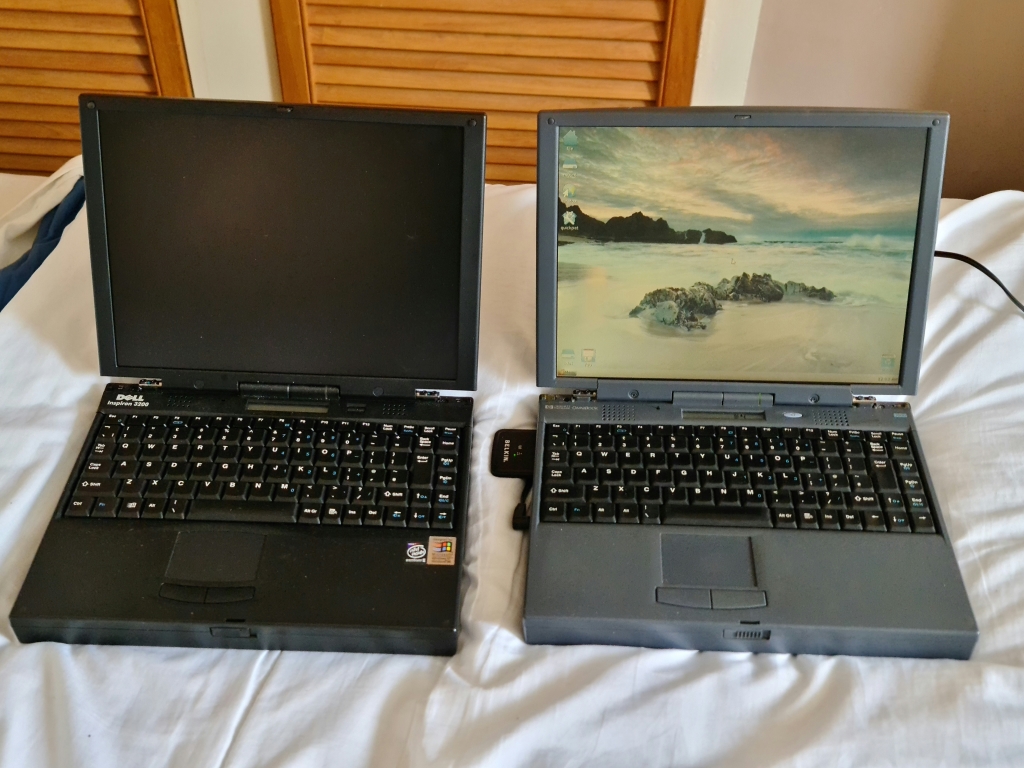

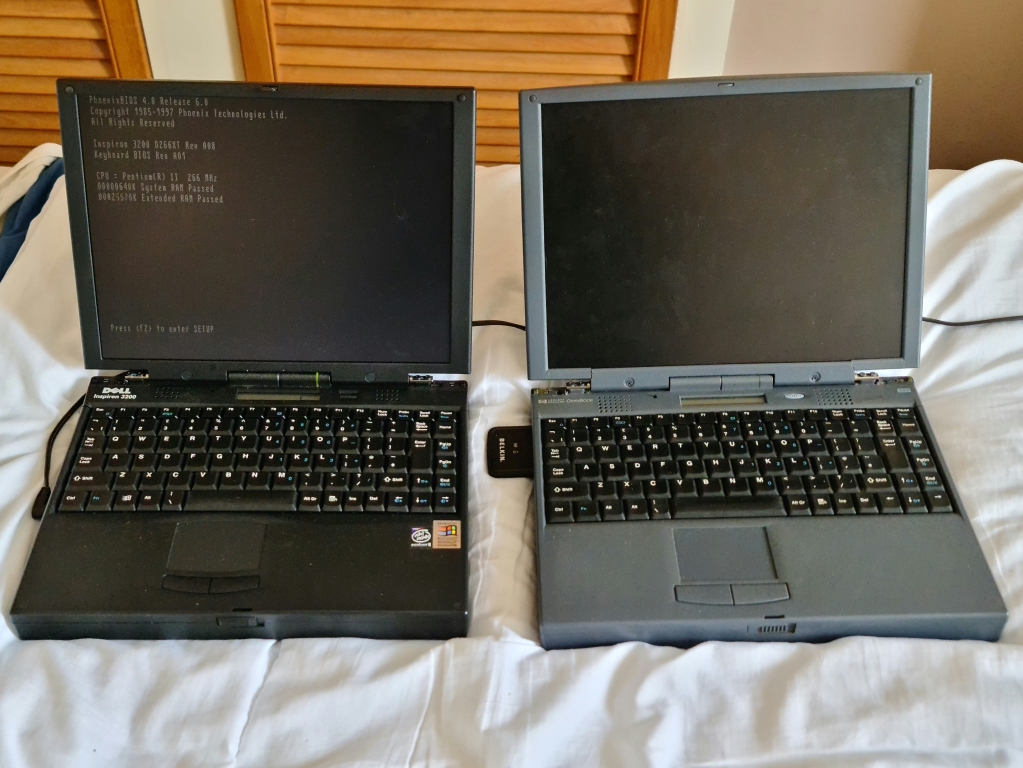

They are almost exactly the same
I'll test the Omnibook first, just to make sure it still works

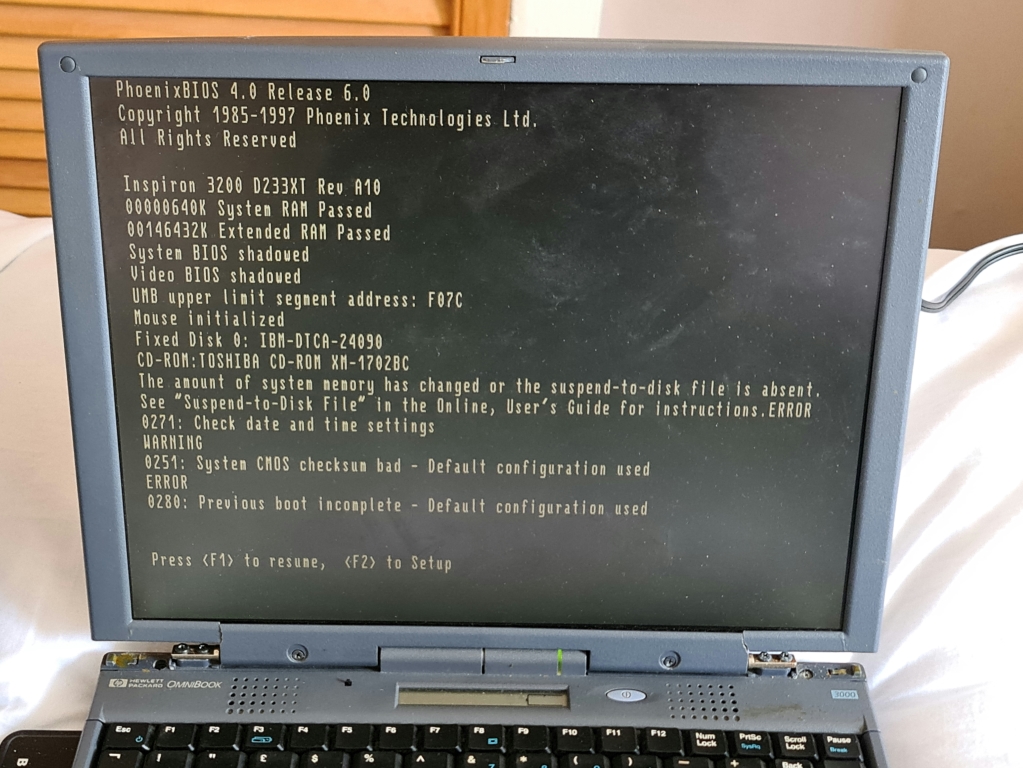

Yes it does work

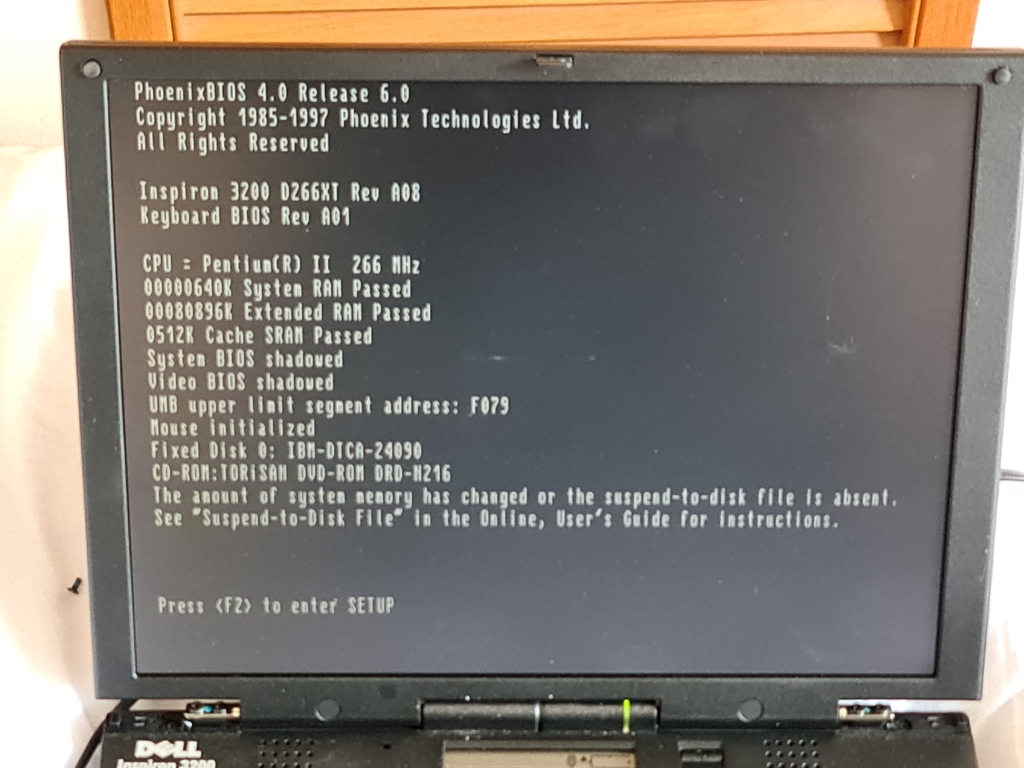

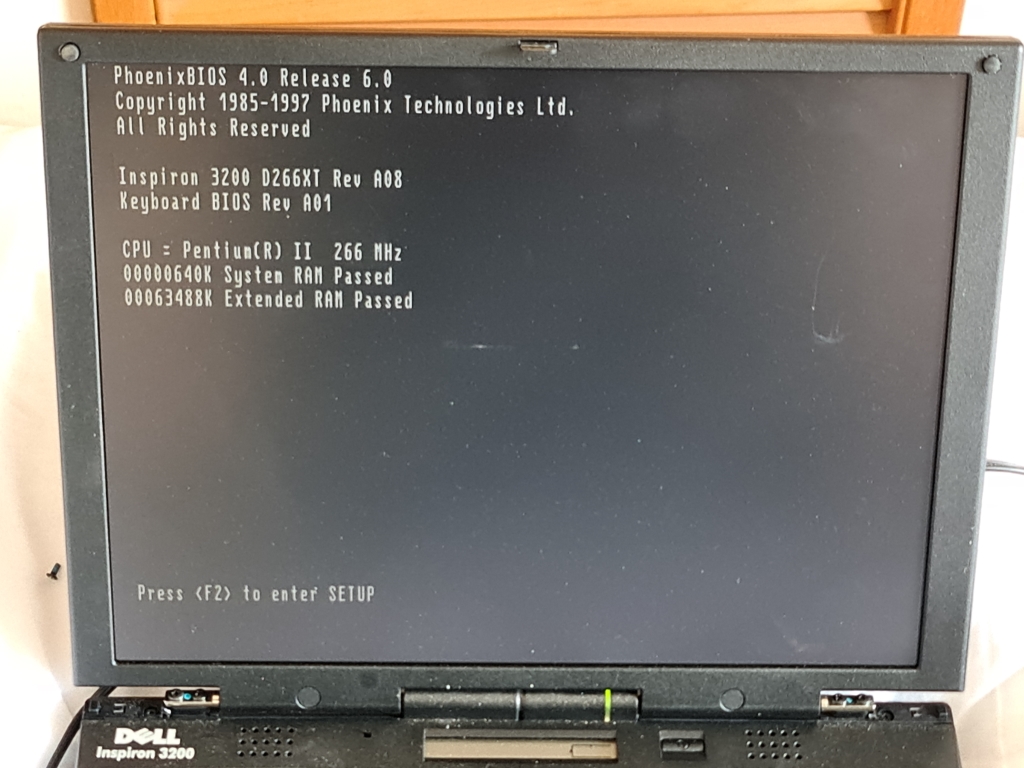

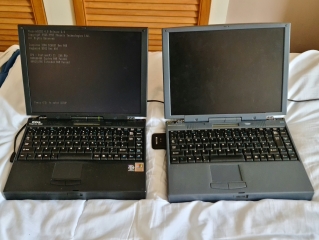

Swap the power lead over and yes, there's life in the old machine

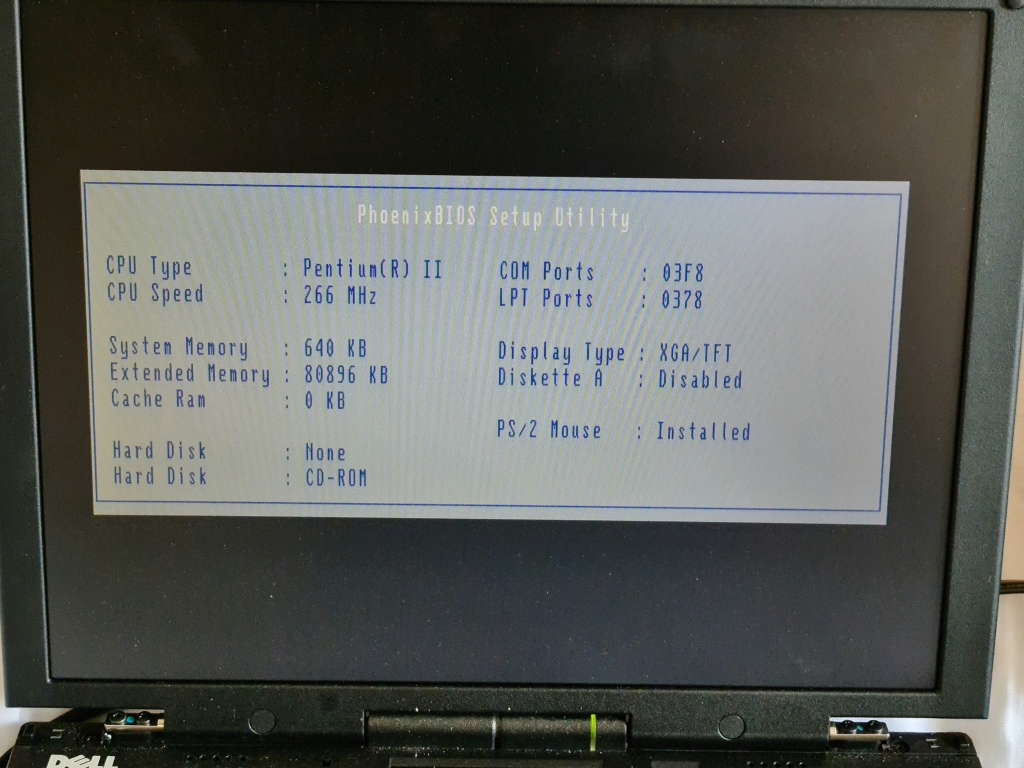

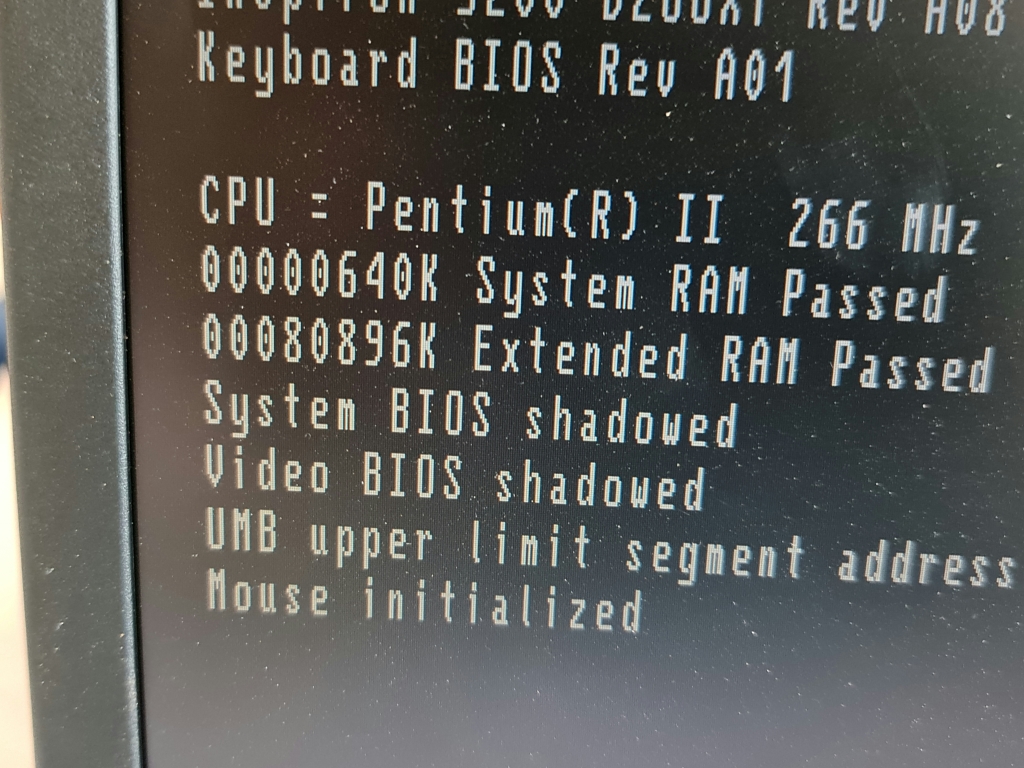

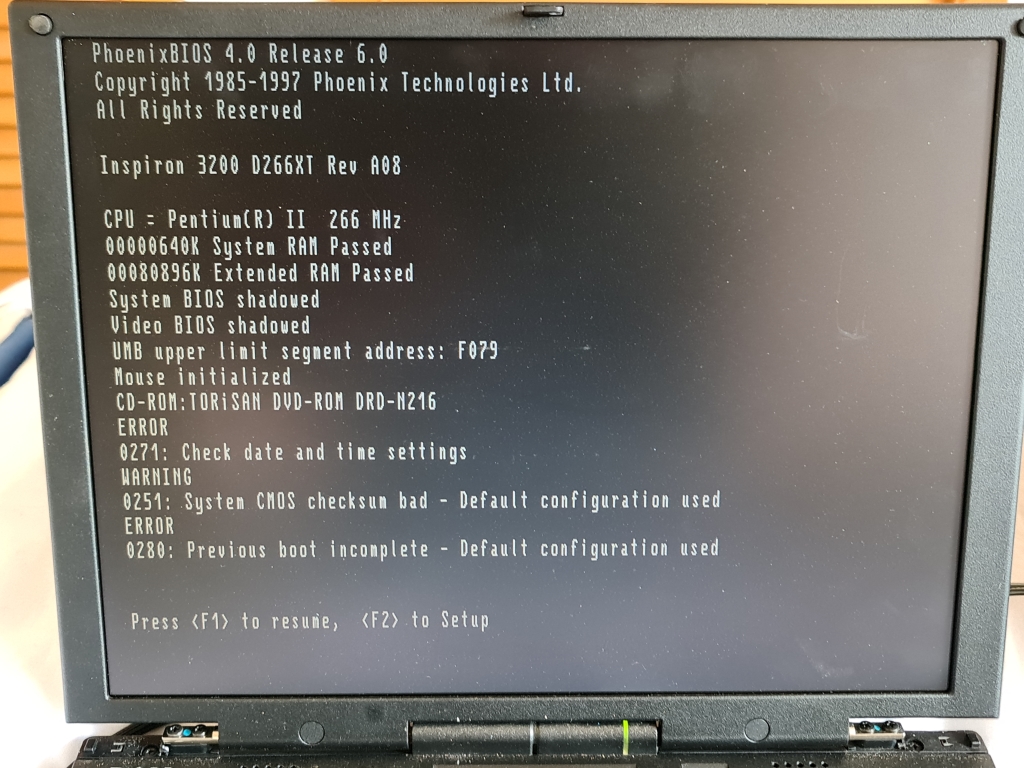

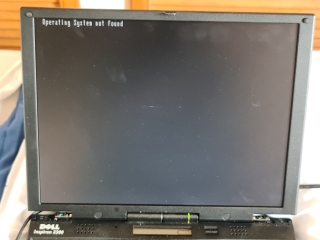

The hard disc sounds unhappy and is not listed in the POST summary screen

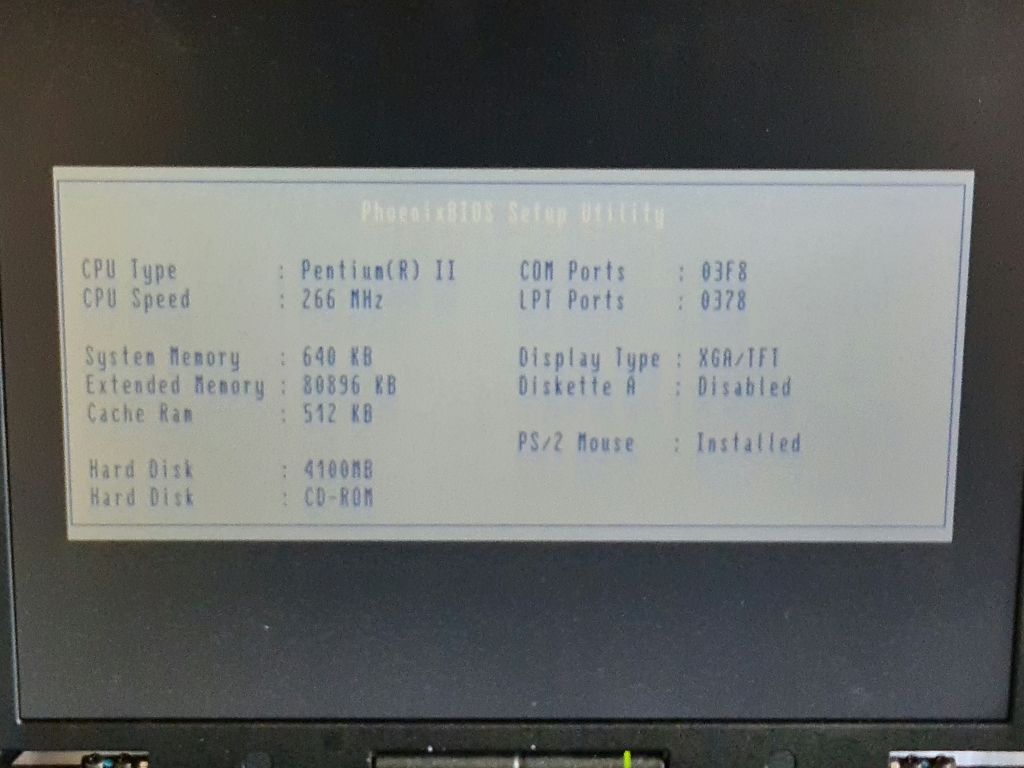

Swap in the hard disc from the Omnibook

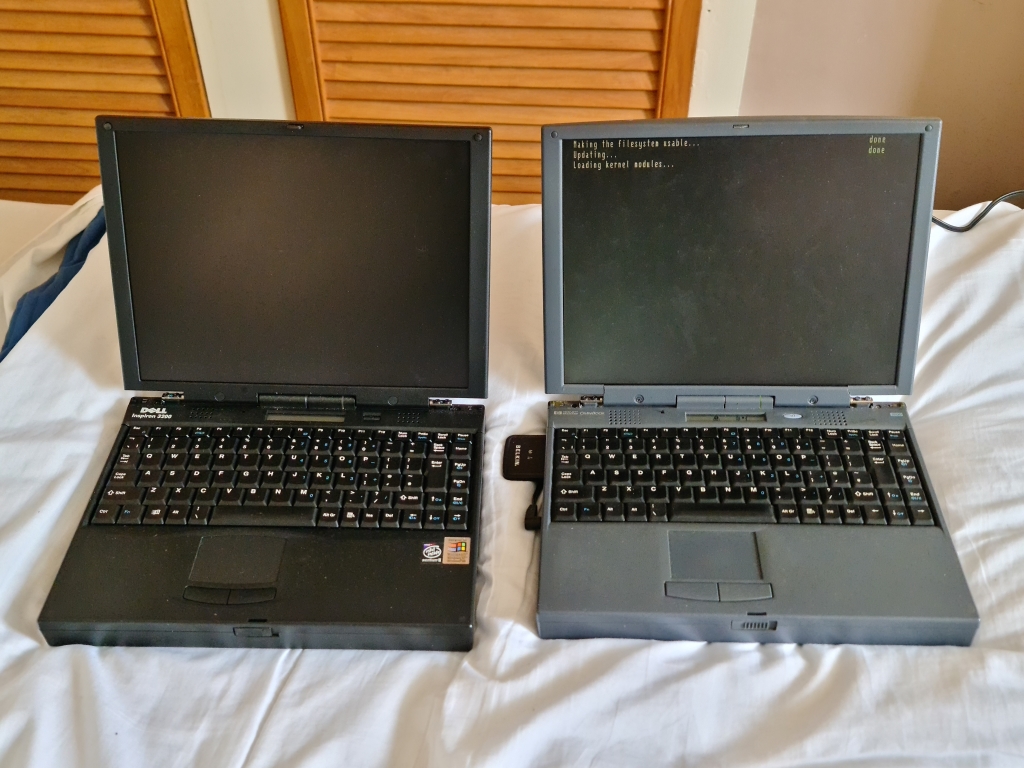

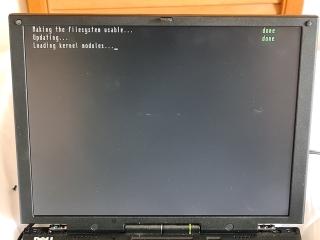

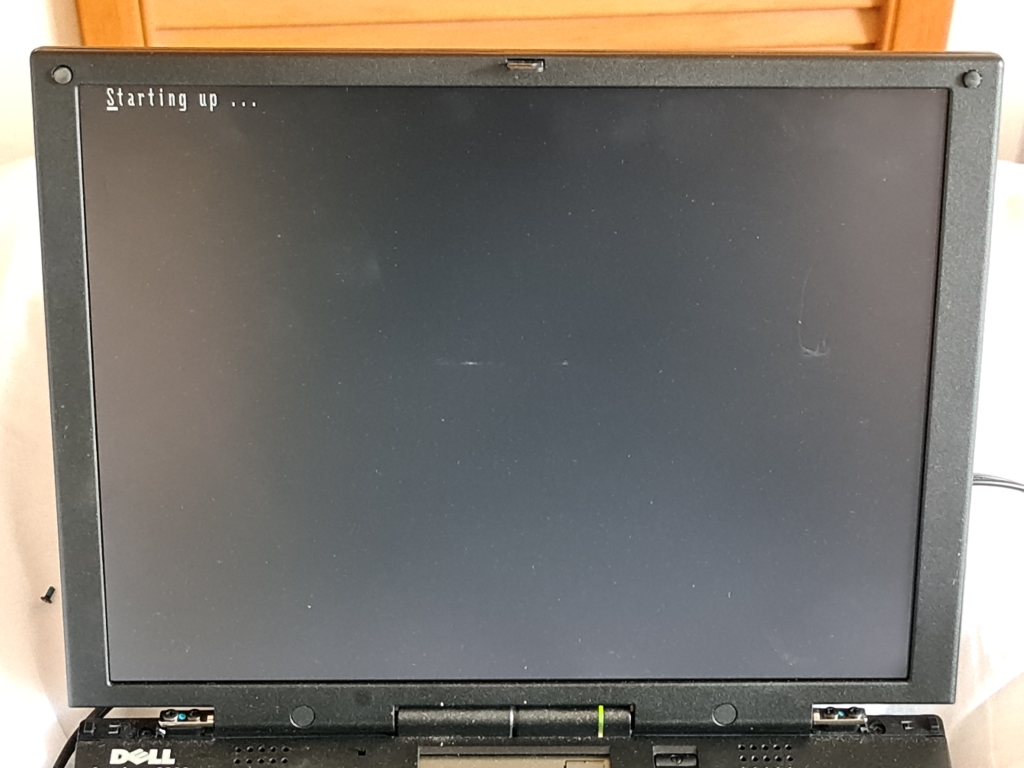

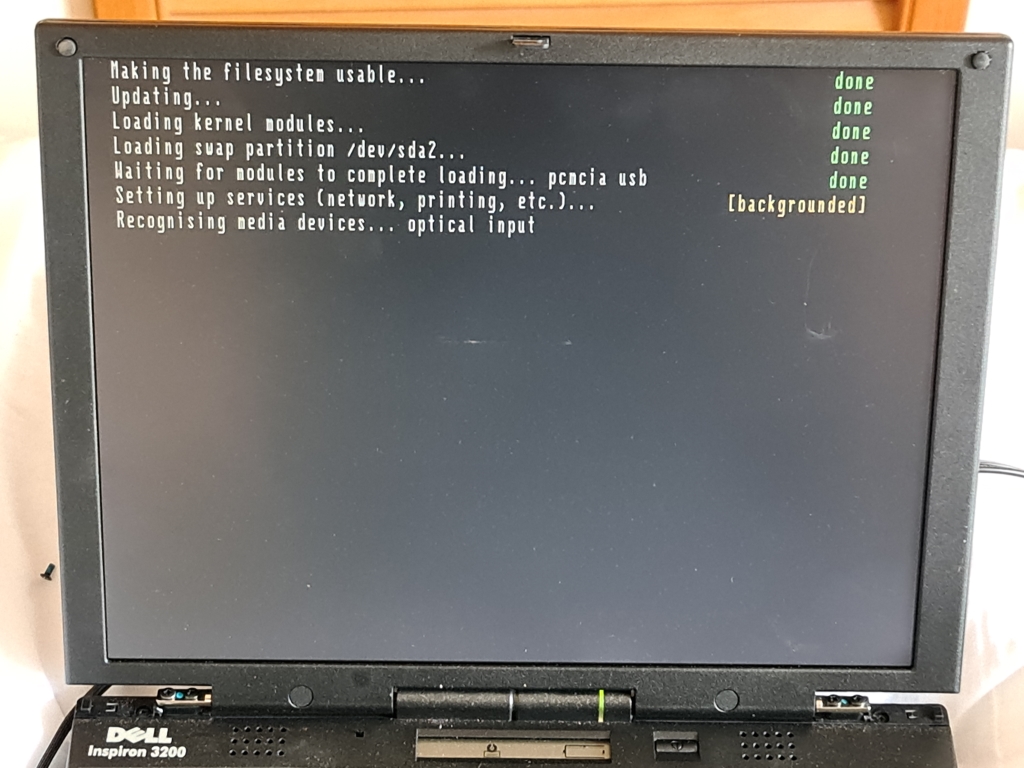

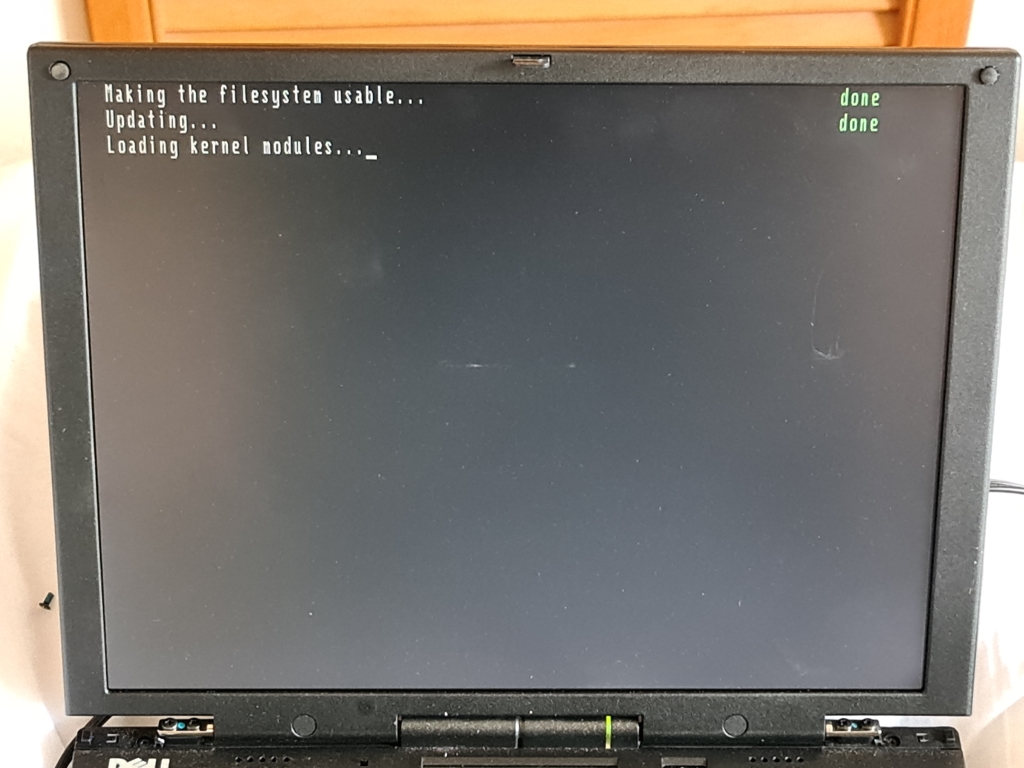

It's booting...

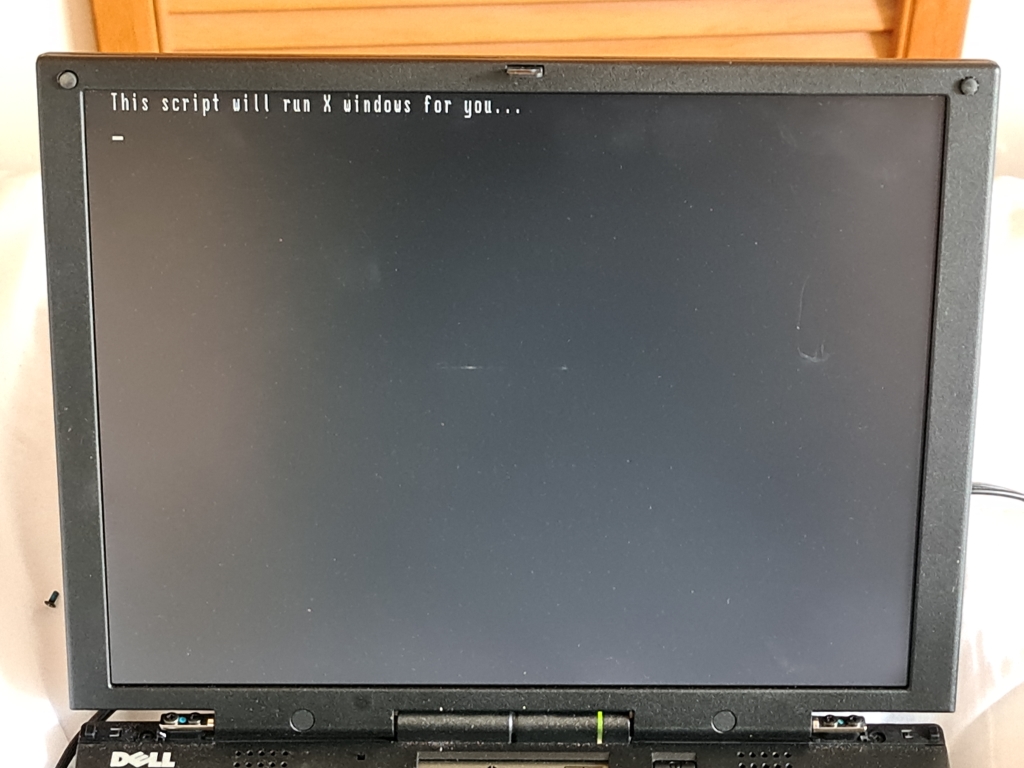

Looks good
An old version of Pupply Linux has booted

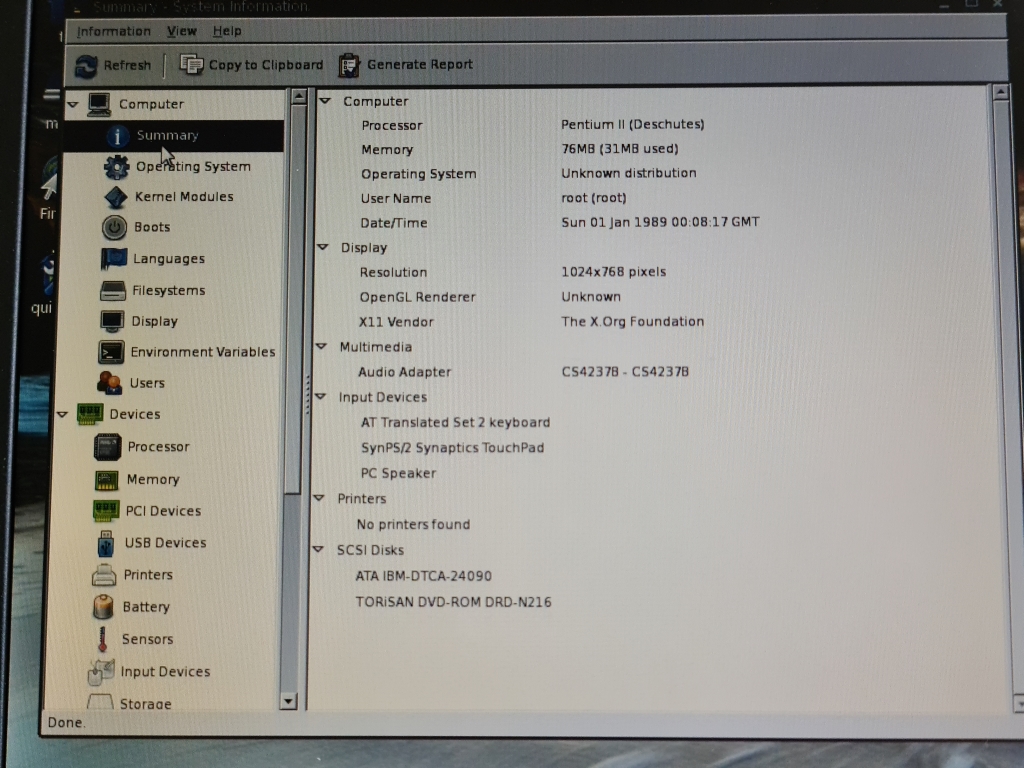

the system info screen from within Puppy Linux

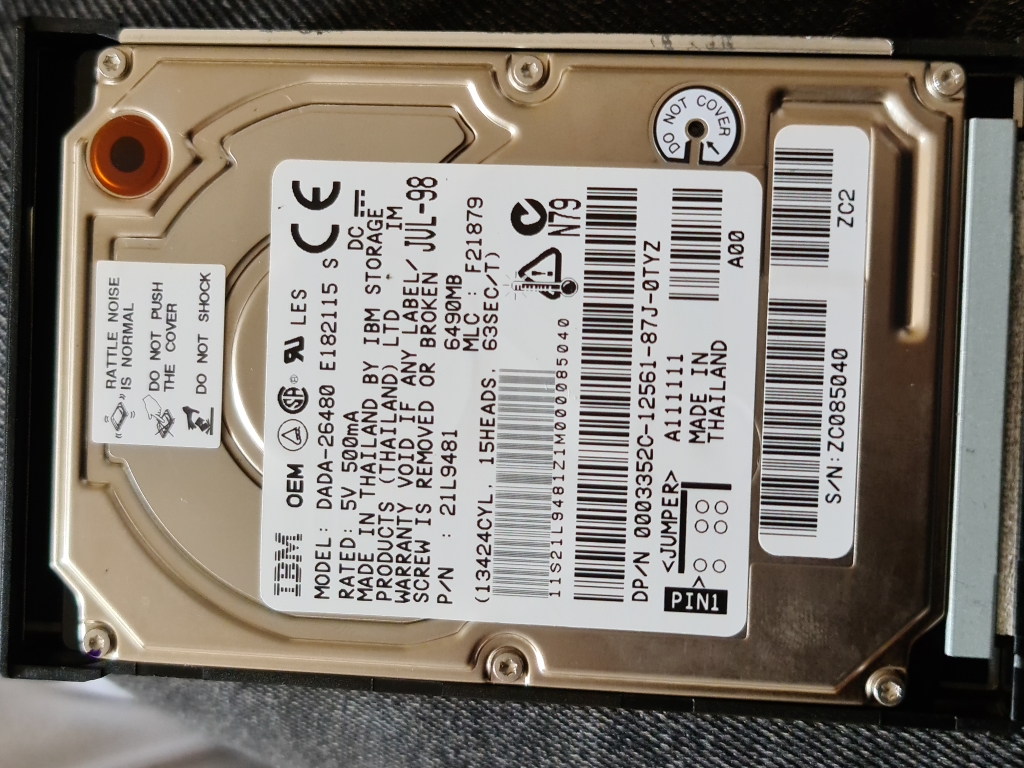

This is the hard disc from the Dell, 6490MB! The Omnibook claims it can only support one particular hard disc in either 2GB, or 4GB
I tried the disc again and it's dead Jim
